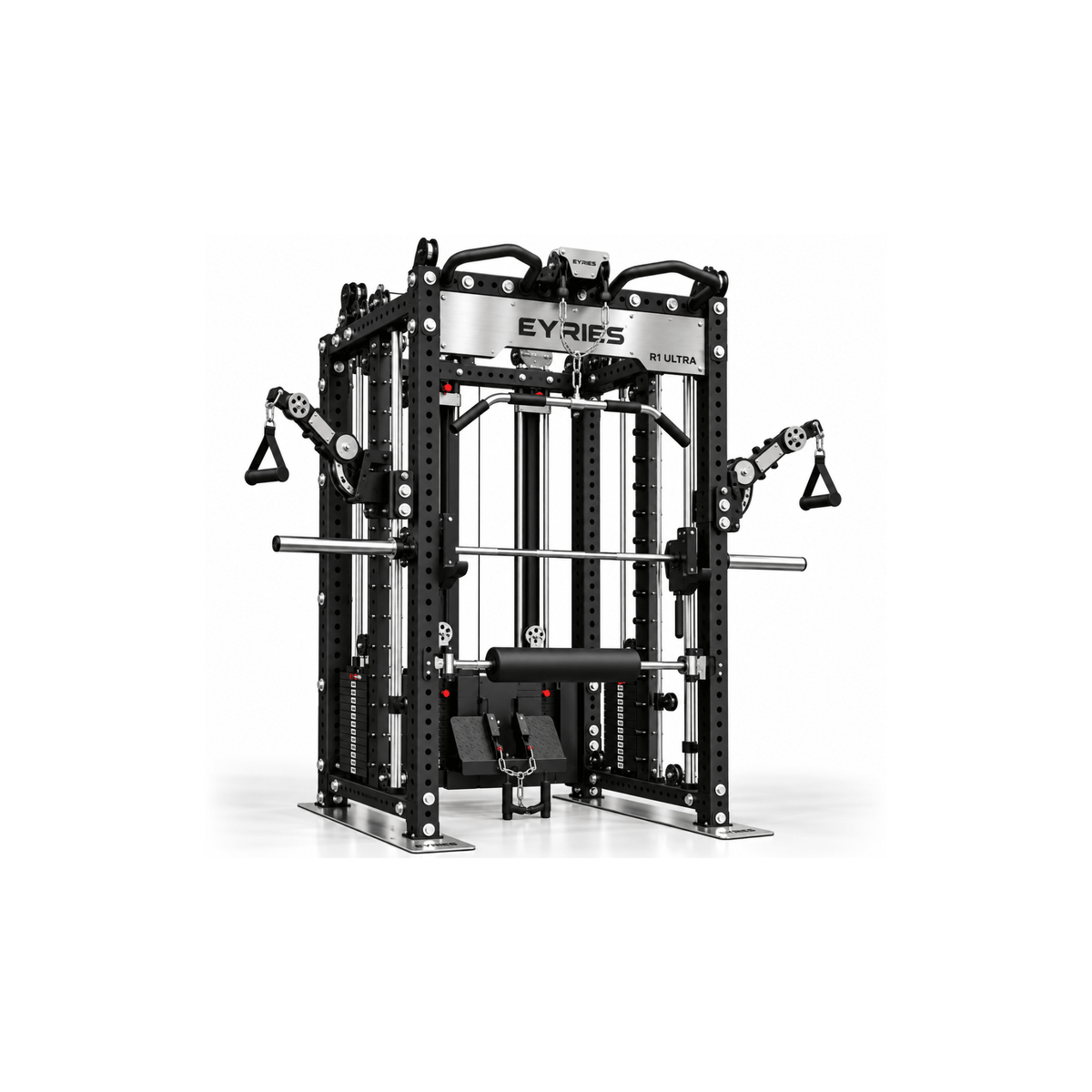

Eyries R1 Ultra All-in-One Functional Trainer

The EYRIES R1 Ultra is designed as a complete 5-in-1 strength training system for residential and commercial gym users who want the versatility of multiple training stations integrated into a single machine.

The R1 Ultra combines a Functional Trainer, integrated Smith Machine, heavy-duty Power Rack, dedicated Lat Pulldown station, and Low Row station. The integrated design supports a wide range of cable exercises, guided barbell movements, traditional free-weight training, and upper- and lower-body strength exercises without requiring multiple standalone machines.

The dual 220 lb weight stacks provide independent resistance for the adjustable cable system, with a combined total of 440 lb. Each weight stack consists of 20 individual 11 lb (5 kg) plates, allowing users to select resistance according to their training requirements.

Unlike conventional fixed-position cable trolleys, the R1 Ultra features adjustable articulating cable pulley arms. These extended mechanical arms allow users to adjust the cable exit position and angle, providing additional flexibility for cable exercises. Aluminum alloy pulleys and 7 × 19 strand steel cables are integrated into the system for smooth cable movement and reliable performance.

The dedicated Lat Pulldown and Low Row stations are integrated into the central rear section of the machine. Both stations utilize the dual weight stacks simultaneously, providing a separate training configuration from the independently adjustable Functional Trainer stations. The Functional Trainer operates at a 2:1 pulley ratio, while the dedicated Lat Pulldown and Low Row stations operate at a 1:1 ratio.

The integrated Smith Machine provides guided barbell movement for exercises such as squats, presses, and other controlled strength movements. The Power Rack supports traditional barbell training using the included J-Hooks and Spotter Arms.

The main structure uses a 3” × 3” (75 × 75 mm) steel frame with 3 mm bare steel wall thickness, equivalent to 11-gauge construction. The uprights feature 1” diameter holes with 2” spacing, allowing flexible attachment positioning. Grade 8.8 fasteners are used throughout the frame assembly.

The R1 Ultra includes J-Hooks, Spotter Arms, Cable Handles, a Lat Pulldown Bar, a Low Row Handle, and a removable Leg Hold-Down Roller. The roller mounts between the two front uprights to provide additional lower-body stabilization during seated Lat Pulldown exercises.

Designed for residential and commercial use, the EYRIES R1 Ultra provides a comprehensive strength training platform where structural rigidity, training versatility, and space efficiency are the priority.

Overall Height: 87.8” (2230 mm)

Overall Width: 61.0” (1550 mm, Outside Base Plates)

Inner Upright Width: 44.9” (1140 mm)

Overall Depth: 51.2” (1300 mm)

Frame Size: 3” × 3” (75 × 75 mm) Steel

Steel Thickness: 3 mm (11 Gauge)

Weight Stacks: Dual 220 lb (100 kg)

Weight Plates: 20 × 11 lb (5 kg) Per Stack

Total Weight Stack: 440 lb (200 kg)

Pulley System: Dual Adjustable Articulating Cable Pulley Arms

Pulley Material: Aluminum Alloy

Functional Trainer Pulley Ratio: 2:1

Lat Pulldown / Low Row: Dedicated Integrated Stations

Lat Pulldown / Low Row Resistance: Dual Weight Stack System

Lat Pulldown / Low Row Pulley Ratio: 1:1

Cable Construction: 7 × 19 Strand Steel Cable

Upright Hole Diameter: 1” (25.4 mm)

Upright Hole Spacing: 2” (50.8 mm)

Fastener Grade: 8.8

Smith Machine: Integrated

Pull-Up Station: Integrated Multi-Grip Pull-Up Bar

Leg Hold-Down Roller: Removable, Front Upright Mounted

Included Attachments: J-Hooks, Spotter Arms, Cable Handles, Lat Pulldown Bar, Low Row Handle & Leg Hold-Down Roller

Recommended Use: Residential / Commercial

Residential Warranty: 3 Years

Commercial Warranty: 3 Years
