All-in-One Functional Trainer with Smith Machine | N1017 - IRONBAY Fitness

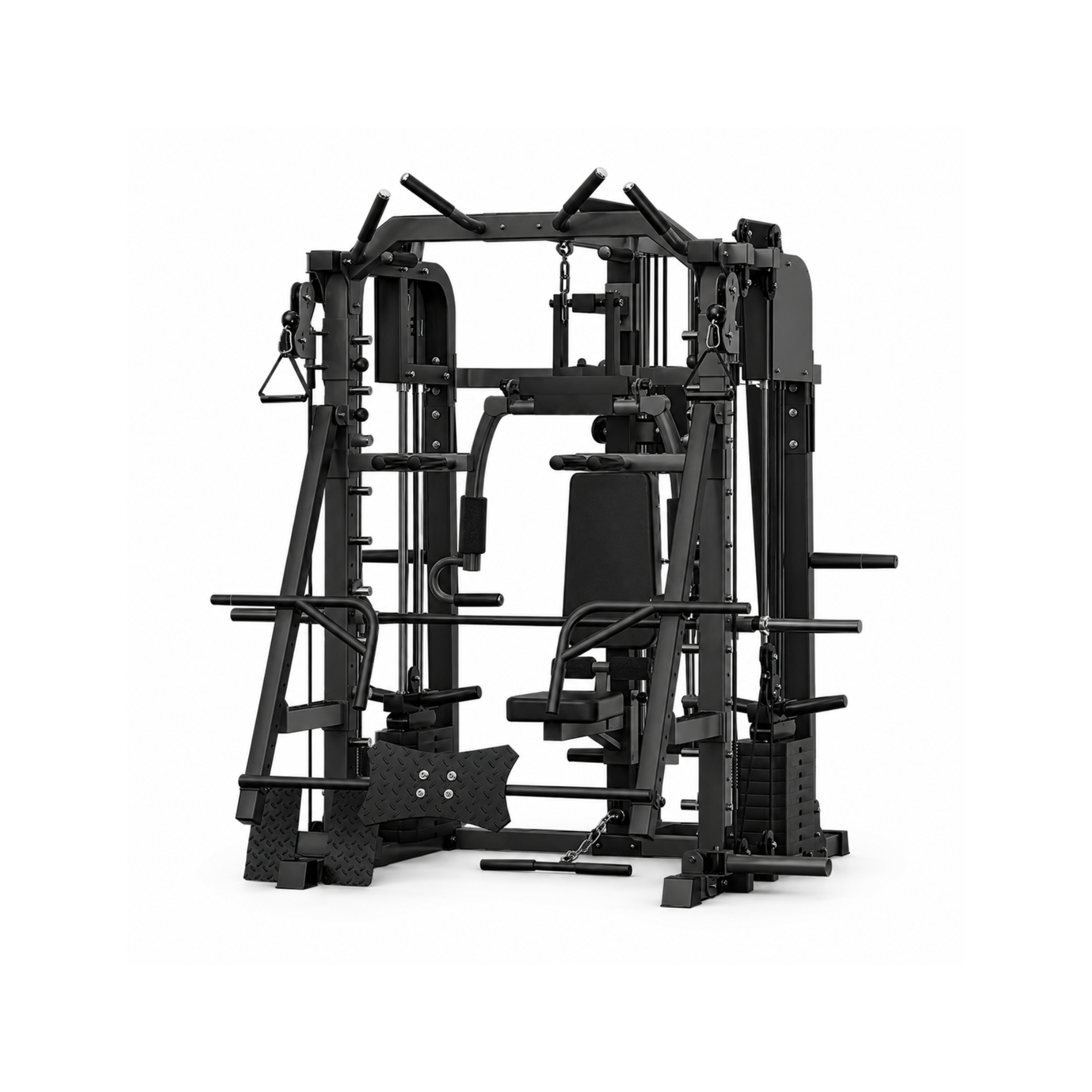

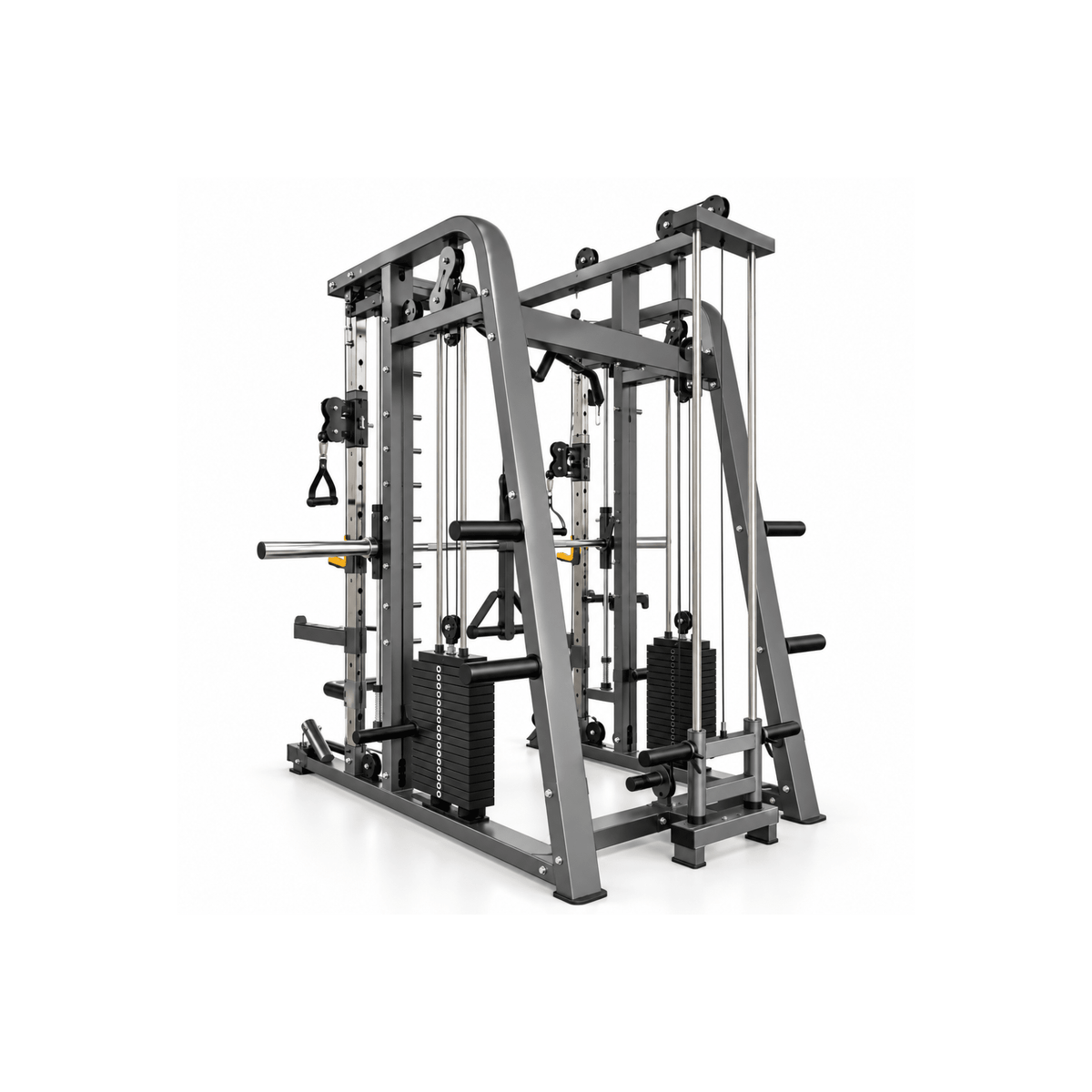

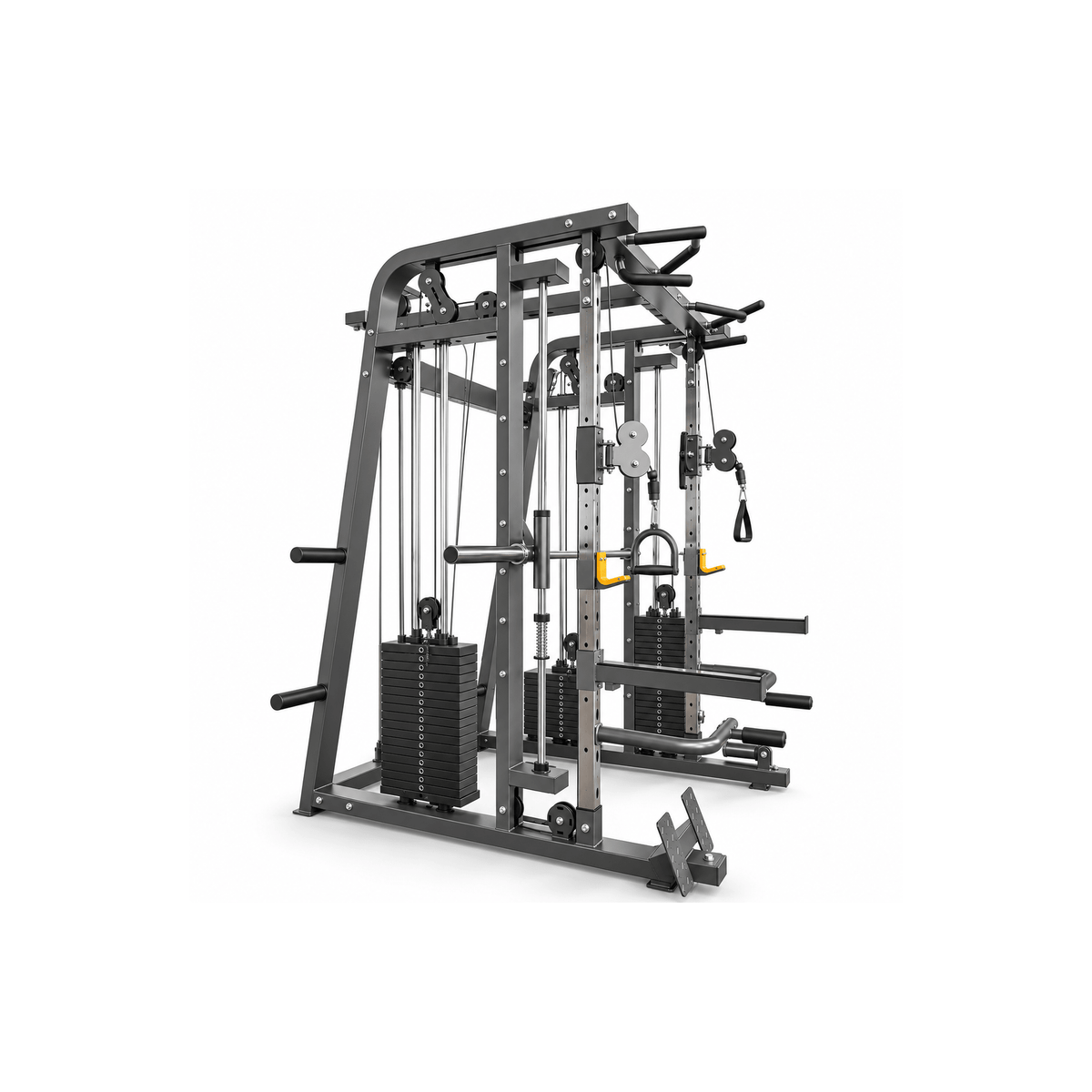

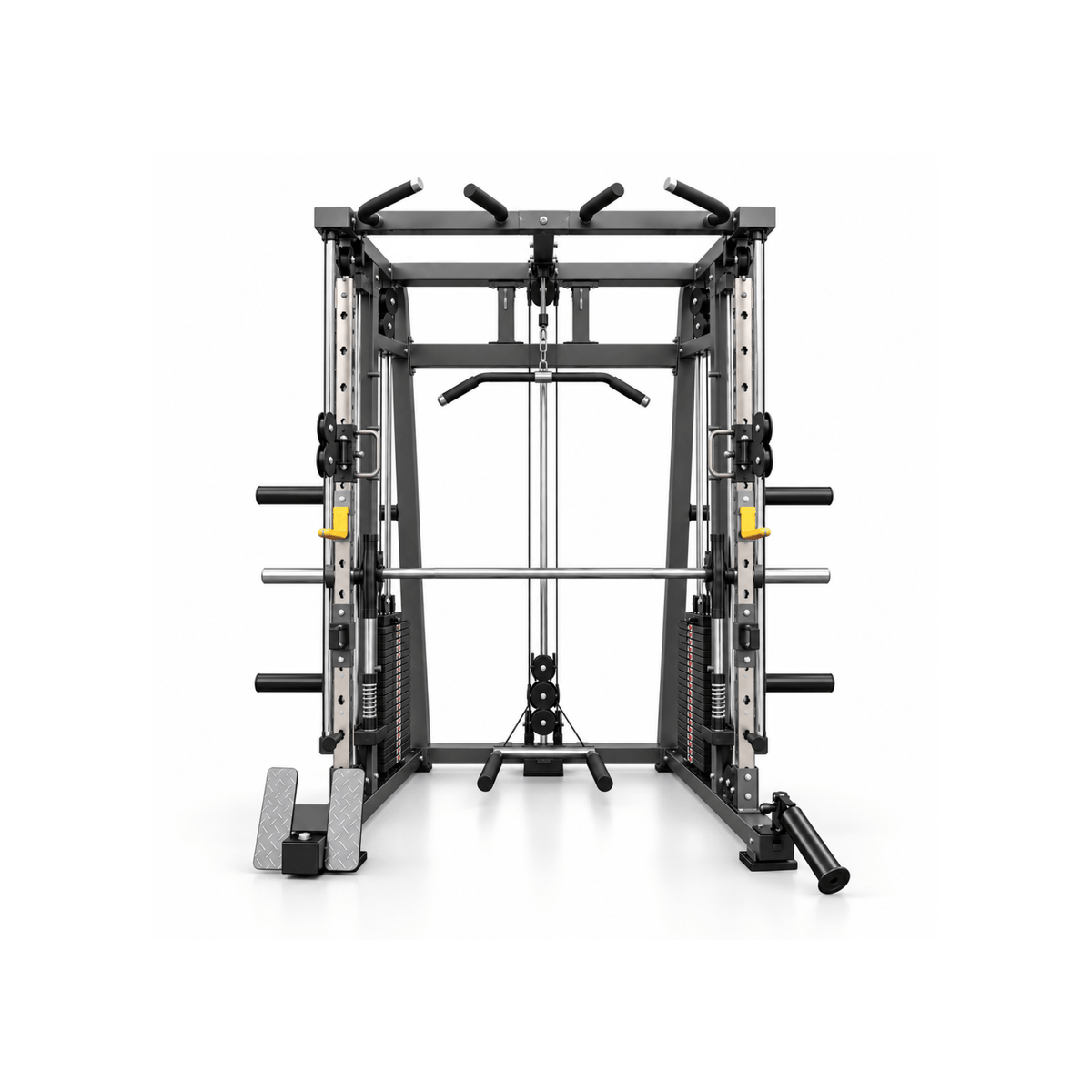

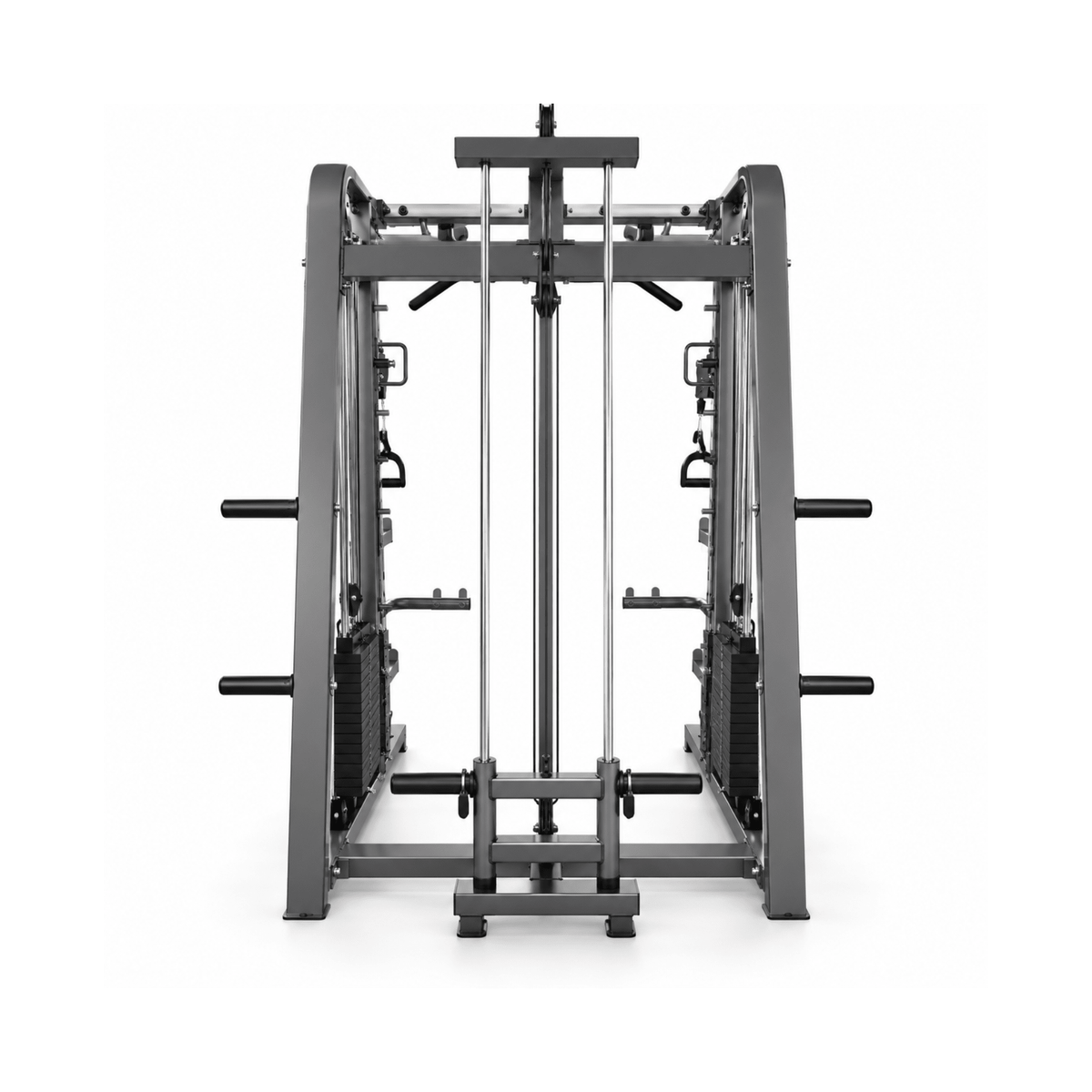

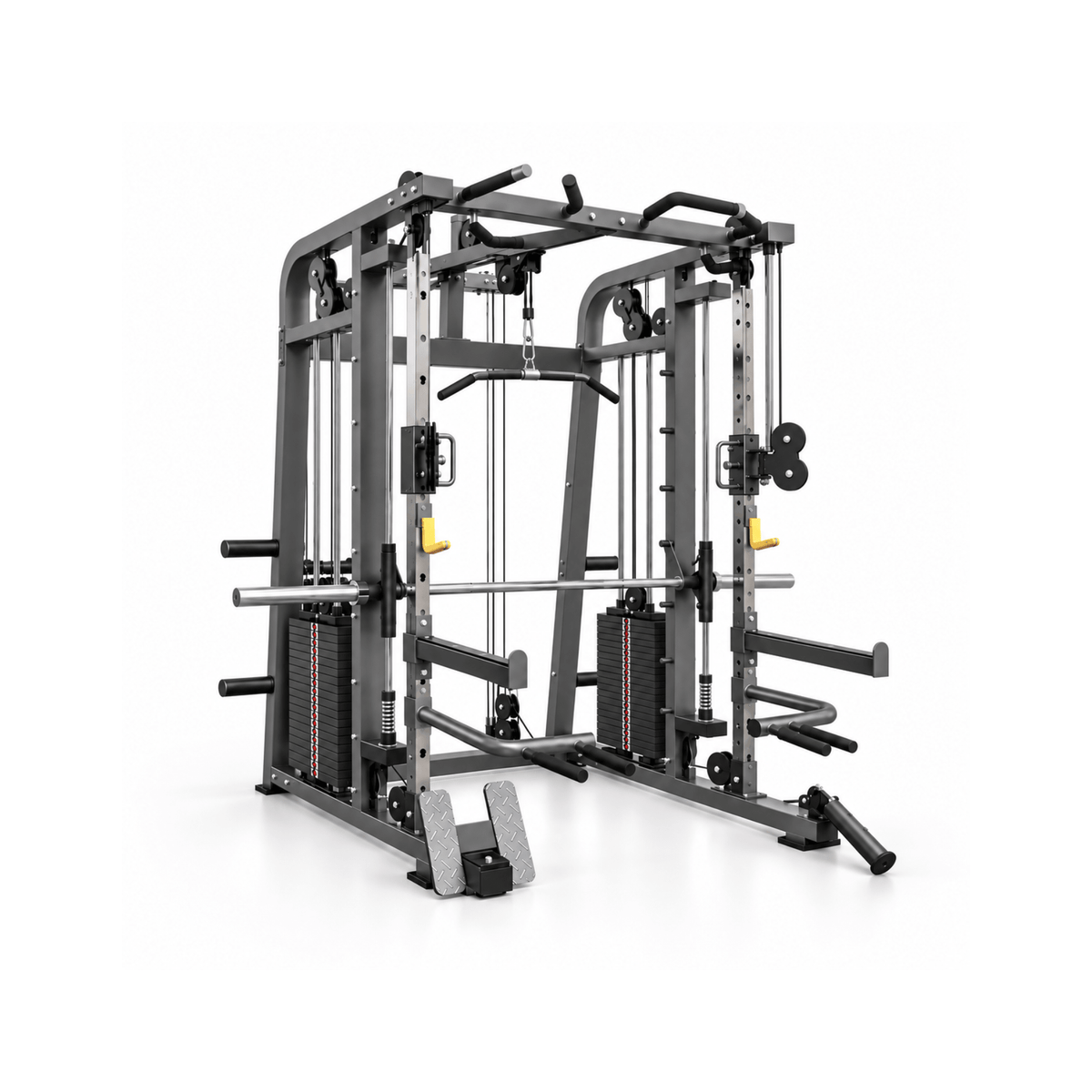

All-in-One Functional Trainer with Smith Machine

$1,890.00

Shipping calculated at checkout.

Displayed inventory reflects actual stock in our Calgary warehouse.

5 in stock

The IRONBAY N1017 combines a Smith Machine, dual adjustable pulley system, dedicated lat pulldown and low row stations, pull-up bar, dip station, spotter arms, footplate, and Landmine attachment into one integrated strength training system.

Designed to support a wide range of upper-body, lower-body, and full-body exercises within a single footprint, the N1017 provides a complete training platform for serious home gym setups.

Calgary Local Pickup and Canada-wide Shipping.

Shop Cable Attachments

Shop Benches

Shop Gym Flooring

Next Restock: Mid-November 2026
Residential Warranty： 2 Years
Price Match：Calgary Retail Stores

Price Match Policy: We match prices for identical, new-in-box products from Calgary Retail Stores that are currently in stock. Subject to product specification verification.

Product Description

The IRONBAY N1017 is designed as a complete strength training system for home gym users who want the versatility of multiple training stations integrated into a single machine.

The N1017 combines a Smith Machine, dual adjustable pulley system, dedicated lat pulldown and low row stations, dip station, pull-up station, spotter arms, footplate, and Landmine attachment. The integrated design supports a wide range of barbell, cable, and bodyweight movements without requiring multiple standalone machines.

The dual 150 lb weight stacks provide independent resistance for the cable system. Each weight stack also features additional plate-loading pegs, allowing Olympic weight plates to be added beyond the built-in stack resistance when additional load is required.

A separate plate-loaded resistance system is integrated into the dedicated rear lat pulldown and low row station. This allows the rear cable station to use Olympic weight plates independently from the dual weight stacks, expanding the available loading options and keeping the dedicated high/low pulley system functionally separate from the adjustable functional trainer.

The main structure uses a 2” × 3” steel frame with 2 mm wall thickness. Rather than relying only on individual uprights, the left and right sides use integrated frame assemblies that increase structural rigidity while reducing assembly complexity. This construction allows the N1017 to support a maximum recommended payload of up to 1,500 lb.

A 48” Lat Pulldown Bar and Straight Lat Bar are included with the machine, providing dedicated attachments for high-pulley and low-pulley training.

Designed primarily for residential and home gym use, the N1017 provides a high-capacity, multi-function training platform where versatility, space efficiency, and value are the priority.

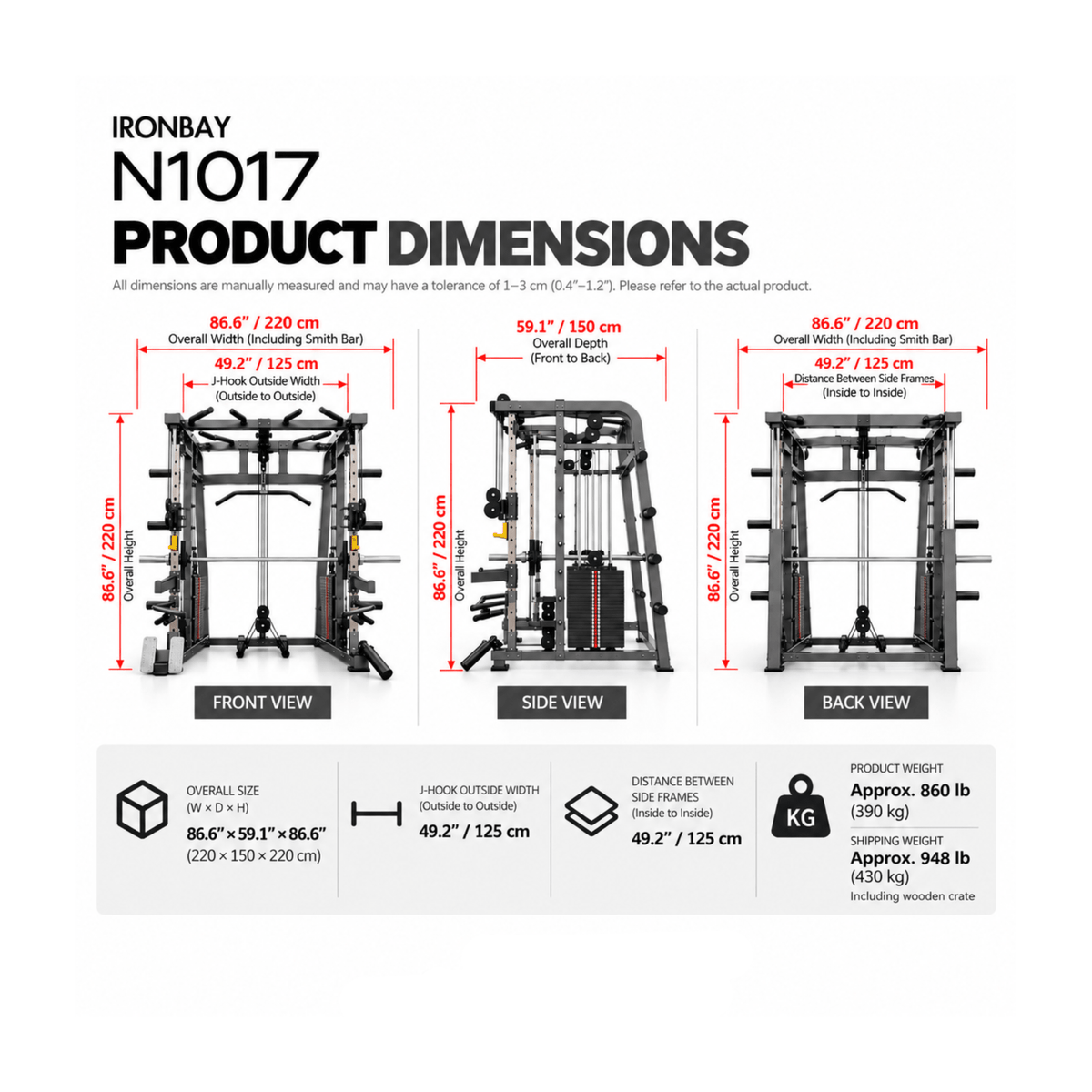

Dimensions & Specifications

Overall Width: 86.6” (220 cm), including Smith Bar

Distance Between Side Frames: 49.2” (125 cm)

J-Hook Outside Width: 49.2” (125 cm), outside to outside

Overall Depth: 59.1” (150 cm), front to back

Overall Height: 86.6” (220 cm)

Footprint Area: Approx. 22.6 ft² (2.1 m²)

Product Weight: Approx. 860 lb (390 kg)

Shipping Weight: Approx. 948 lb (430 kg), including wooden crate

Specifications

Frame Size: 2” × 3” Steel

Steel Thickness: 2 mm

Weight Stacks: Dual 150 lb (68 kg)

Total Weight Stack: 300 lb (136 kg)

Pulley System: Dual Adjustable Pulley System

Pulley Ratio: 2:1

Lat Pulldown / Low Row: Dedicated Rear Station

Lat Pulldown / Low Row Resistance: Olympic Plate-Loaded

Smith Machine: Integrated

Plate Compatibility: 2” Olympic Weight Plates

Recommended Capacity: Up to 1,500 lb (680 kg)

Pull-Up Station: Integrated Multi-Grip Pull-Up Bar

Included Attachments: J-Hooks, Spotter Arms, Dip Handles, Landmine, Rowing Footplate, 48” Lat Pulldown Bar & Straight Lat Bar

Recommended Use: Residential / Home Gym

Commercial Use: Not Recommended

Residential Warranty: 2 Years

Commercial Warranty: Not Covered

Warranty

IRONBAY All-in-One Functional Trainer with Smith Machine is backed by our warranty against manufacturing defects under normal residential use.

Personal Use: 2-Year Warranty

Commercial Use: Not Covered (Commercial use is not recommended.)

This warranty covers manufacturing defects only and does not include cosmetic wear, misuse, abuse, improper assembly, overloading, cable wear from improper use, outdoor storage or modifications.

Smith Machine

Dual Weight Stacks

Lower Rower

Lat Pul Down

All-in-One Design

Where is IRONBAY Fitness located?

We're at 2015 32 Ave NE, Unit 22, Calgary, AB T2E 6Z3, open daily from 10 AM to 6 PM. You can also shop online at ironbayfitness.ca or email us at info@ironbayfitness.ca.

Can I pick up my order in Calgary?

Yes. Local pickup is available at our Calgary store at 2015 32 Ave NE, Unit 22. Place your order online and wait for the “Ready for pickup” notification before coming to the store. Most in-stock orders can be prepared quickly for pickup.

Do you ship outside Calgary?

Yes. We ship to every province in Canada. Shipping is calculated at checkout based on destination, size, and weight. If the actual cost comes in lower, we refund the difference. For remote areas, we confirm the shipping cost with you before we ship. You'll get a tracking number by email once your order is on its way.

Can I visit your Calgary store before I buy?

Yes. Our Calgary store and showroom at 2015 32 Ave NE, Unit 22 is open daily from 10 AM to 6 PM. Come test benches, racks, and machines in person before you decide. We accept Visa, Mastercard, Amex, Interac, Apple Pay, and Google Pay.

Do you offer delivery and assembly in Calgary?

Yes. Delivery only is $150 to a garage or yard, or $250 to a basement or apartment. Delivery plus assembly is $450 (about 4 hours of work). For heavy equipment like the All-in-One Functional Trainer, email us at info@ironbayfitness.ca before ordering.

Can I return a product?

Yes. Eligible products can be returned within 14 days of delivery or pickup. Keep the original packaging and keep everything clean and complete. There is no restocking fee, but return shipping is on you. See our Return & Refund Policy for the full details.

Are your prices negotiable?

No. Our prices are final. But we do match Canadian competitor prices — find the same product cheaper at any Canadian online or retail store and we'll match it. If you're buying for a business, email info@ironbayfitness.ca about wholesale and FOB pricing.

Is this item in stock?

Our website shows live inventory. Pickup orders are usually ready in about 2 hours during store hours. Online orders ship within 24 hours. If something is sold out, the product page shows the next restock date.

Do you match competitor prices in Calgary?

Yes. Find the same product cheaper at any Canadian online or retail store, email us the link at info@ironbayfitness.ca, and we'll match the price.

Why buy from IRONBAY instead of a big online store?

We're local. You can see and try the equipment in our Calgary showroom before you buy, pick up your order the same day, and get help from people who actually train. And we match Canadian prices.

Can I try the equipment before I buy?

Yes. Our Calgary showroom at 2015 32 Ave NE, Unit 22 is open daily from 10 AM to 6 PM. Come test benches, racks, and machines in person.

What if my order arrives damaged?

Email photos to info@ironbayfitness.ca as soon as you notice. We'll arrange a replacement or refund right away. Keep the packaging until we've sorted it out — it helps with the claim.

Do you restock sold-out products?

Yes. Most product pages show the next restock date. You can also email info@ironbayfitness.ca for an ETA. If you need it by a certain date, ask us and we'll give you a straight answer.

Can I change or cancel my order?

Yes, as long as it hasn't shipped yet. Email info@ironbayfitness.ca with your order number. The sooner you email, the better — once a shipping label is printed, we can't stop it.

Do you sell to gyms and trainers?

Yes. We offer wholesale pricing on dumbbells, plates, barbells, kettlebells, and racks. Email info@ironbayfitness.ca for a quote — tell us what you need and how much, and we'll put together pricing for your order.

What payment methods do you accept?

Visa, Mastercard, Amex, Interac, Apple Pay, and Google Pay — online and in store. Every payment is processed securely, so your card details stay safe.

Where do you ship from?

From our Calgary warehouse. Local pickup is usually ready in about 2 hours; Canada-wide shipping is calculated at checkout. Shipping from Calgary means fast delivery across Alberta and Western Canada.

Where can I buy a functional trainer in Calgary?

From IRONBAY Fitness. Order online at ironbayfitness.ca for same-day pickup, or come try it in our Calgary showroom at 2015 32 Ave NE, Unit 22 first.

What exercises can I do on it?

Smith machine presses and squats, cable flies and rows, lat pulldown, low row, dips, pull-ups, and landmine work. One machine covers your whole upper body and then some.

Does it include weight stacks?

Yes. Dual 150 lb stacks — 300 lb total. Plenty of resistance for most lifters, adjustable in small steps.

How much space does it need?

86.6 inches wide × 59.1 inches deep × 86.6 inches high. Measure your ceiling too — it's over 7 feet tall.

How is it delivered?

It weighs about 860 lb and ships in a wooden crate. Email us at info@ironbayfitness.ca before ordering so we can confirm delivery details. You'll want a clear path and a couple of strong helpers on delivery day.

Your prices are so low. Is the quality bad too?

No. We buy straight from the factory — no trading companies, no middlemen — and we do everything ourselves, no agencies or outsourcing. Low prices come from low overhead, not cheap materials. Everything is in stock in our Calgary warehouse with a real warranty, and damaged items get replaced.
